XK120 3.4 Cylinder Head, Studless, Alloy - NOS - No Stamp #

  • Item #HD95
Engine # Part # Foundry # Foundry Head # Type

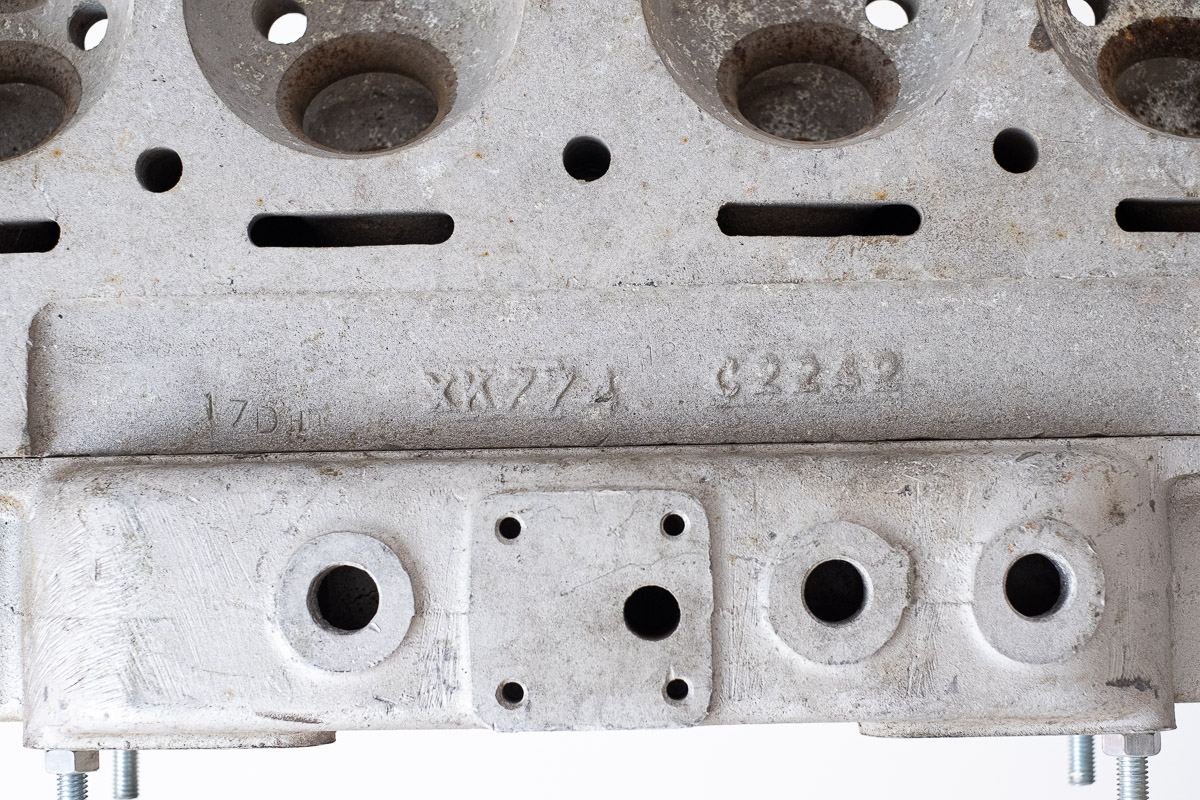

UN-STAMPED C2242   WM

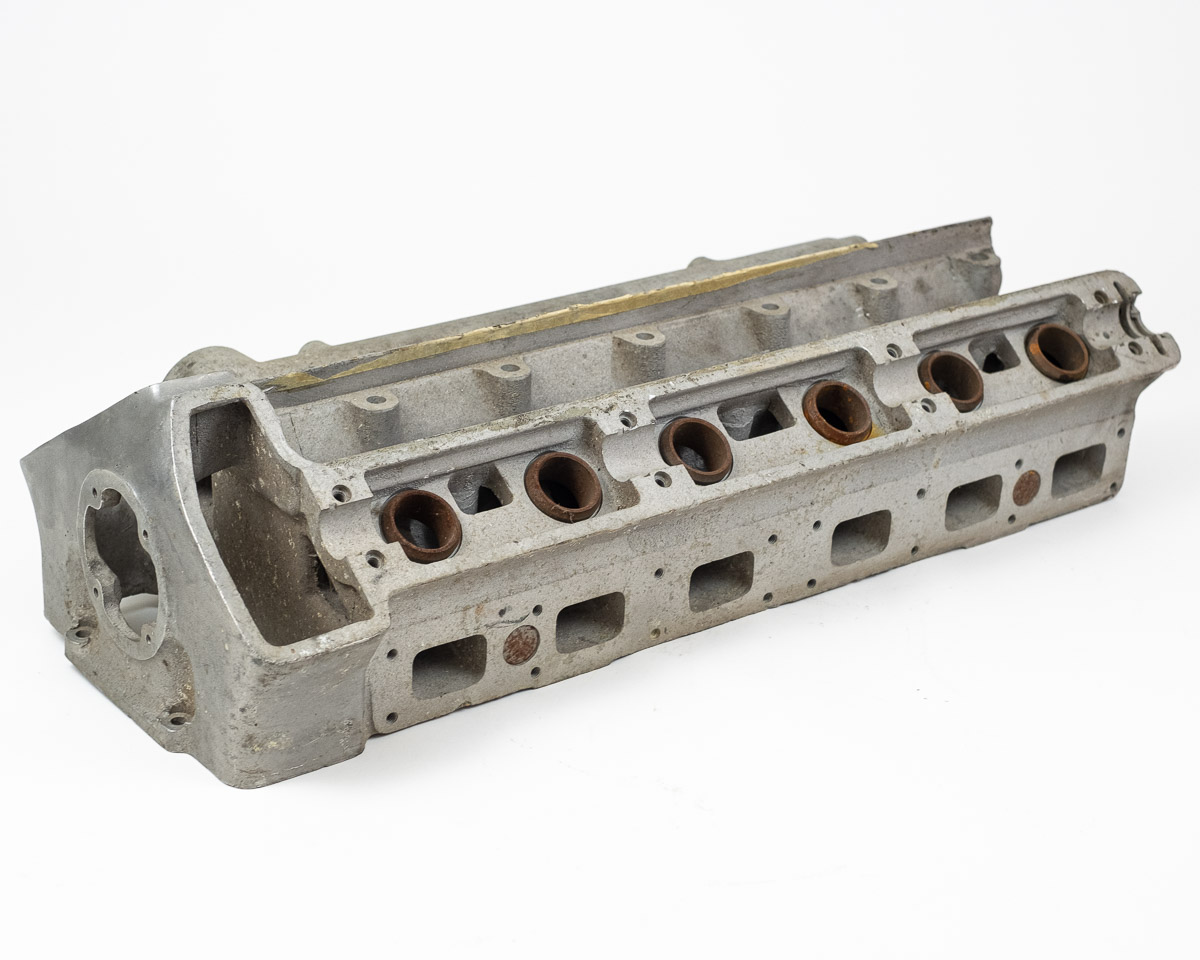

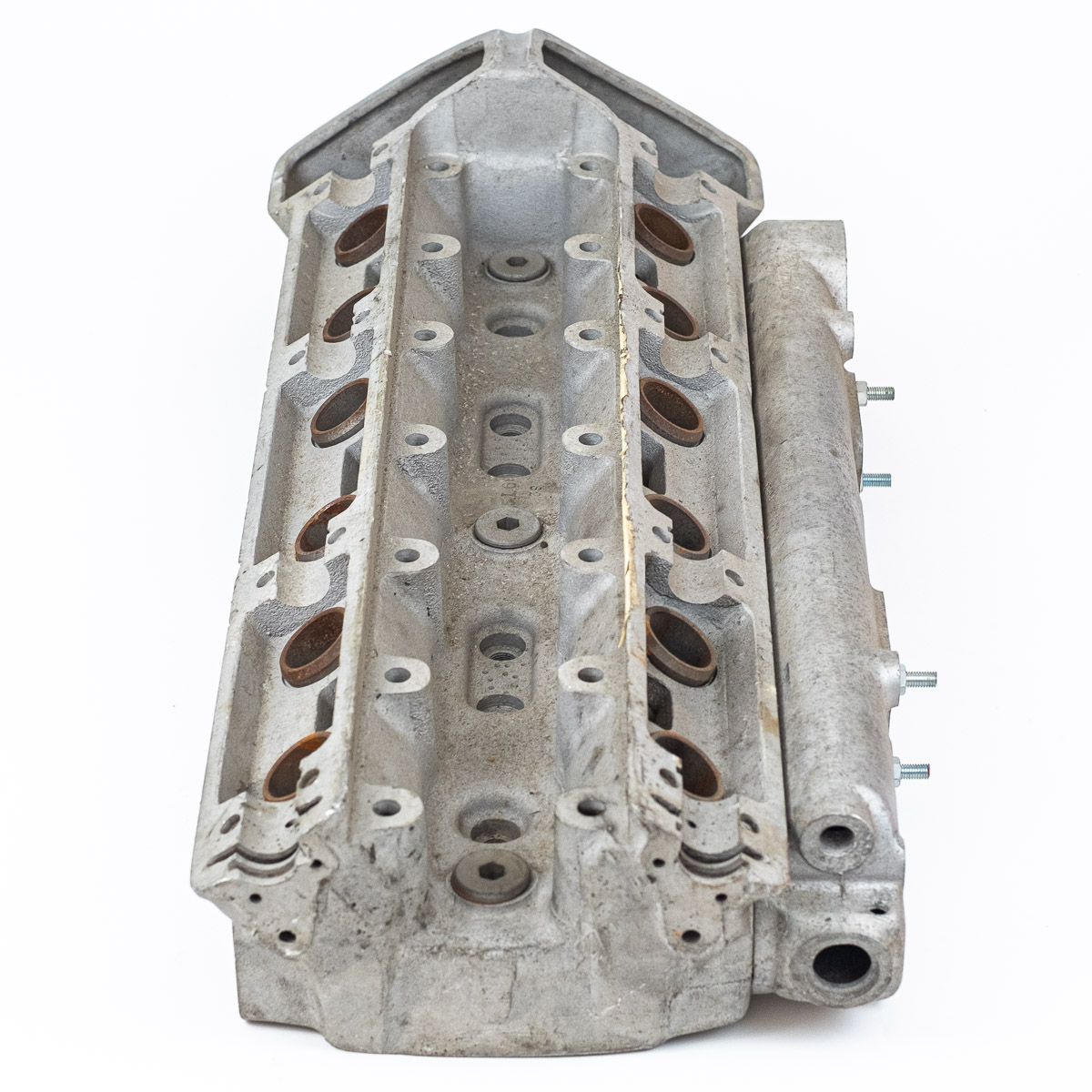

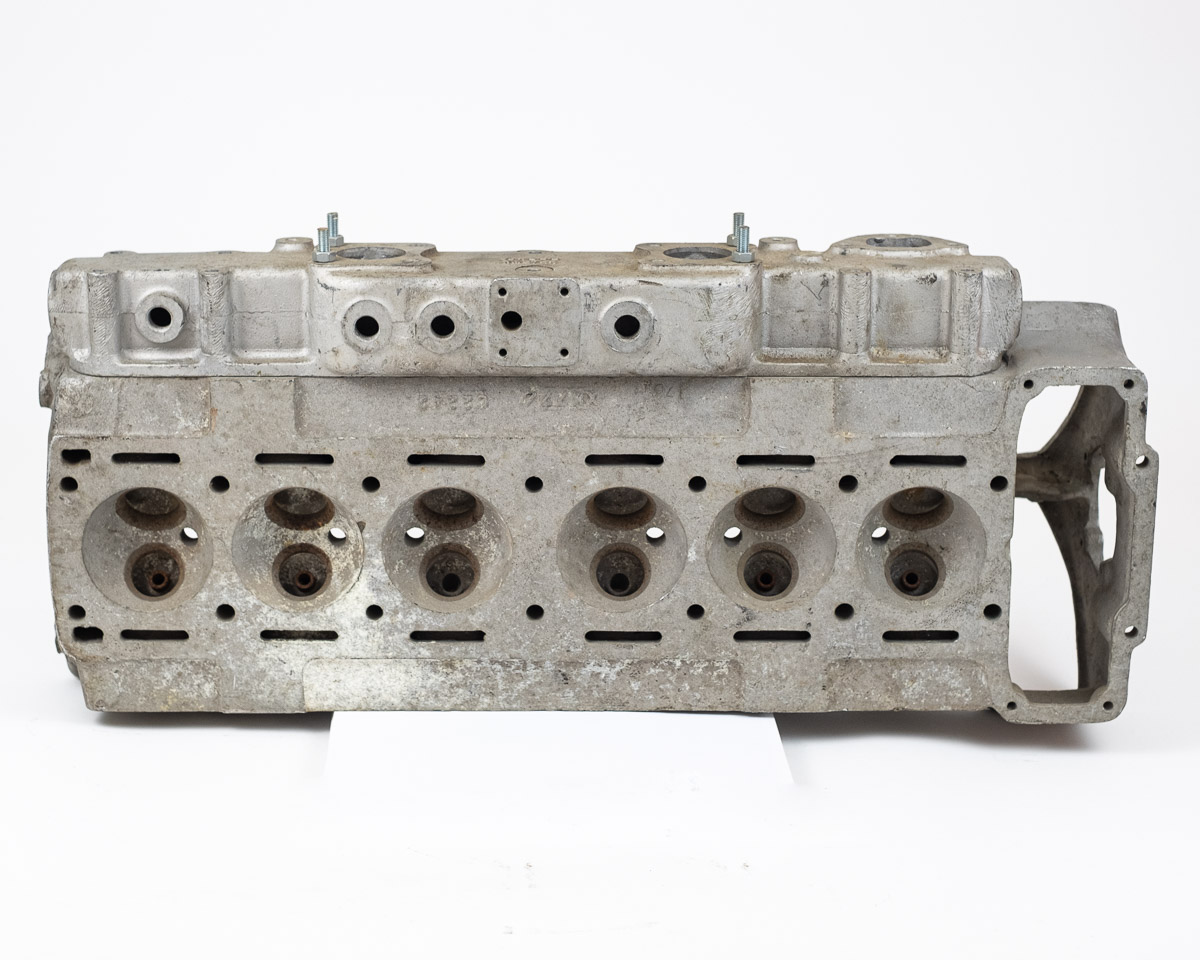

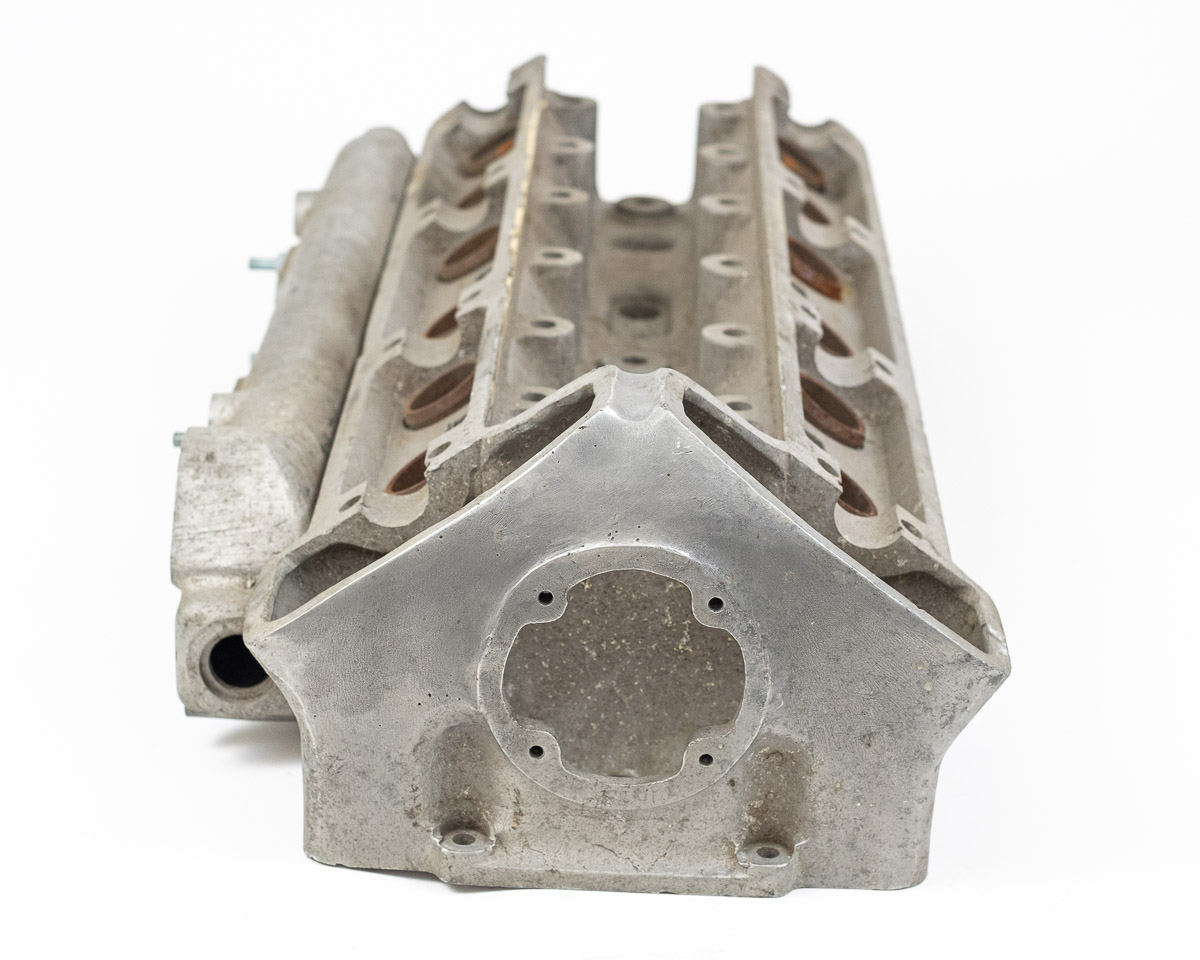

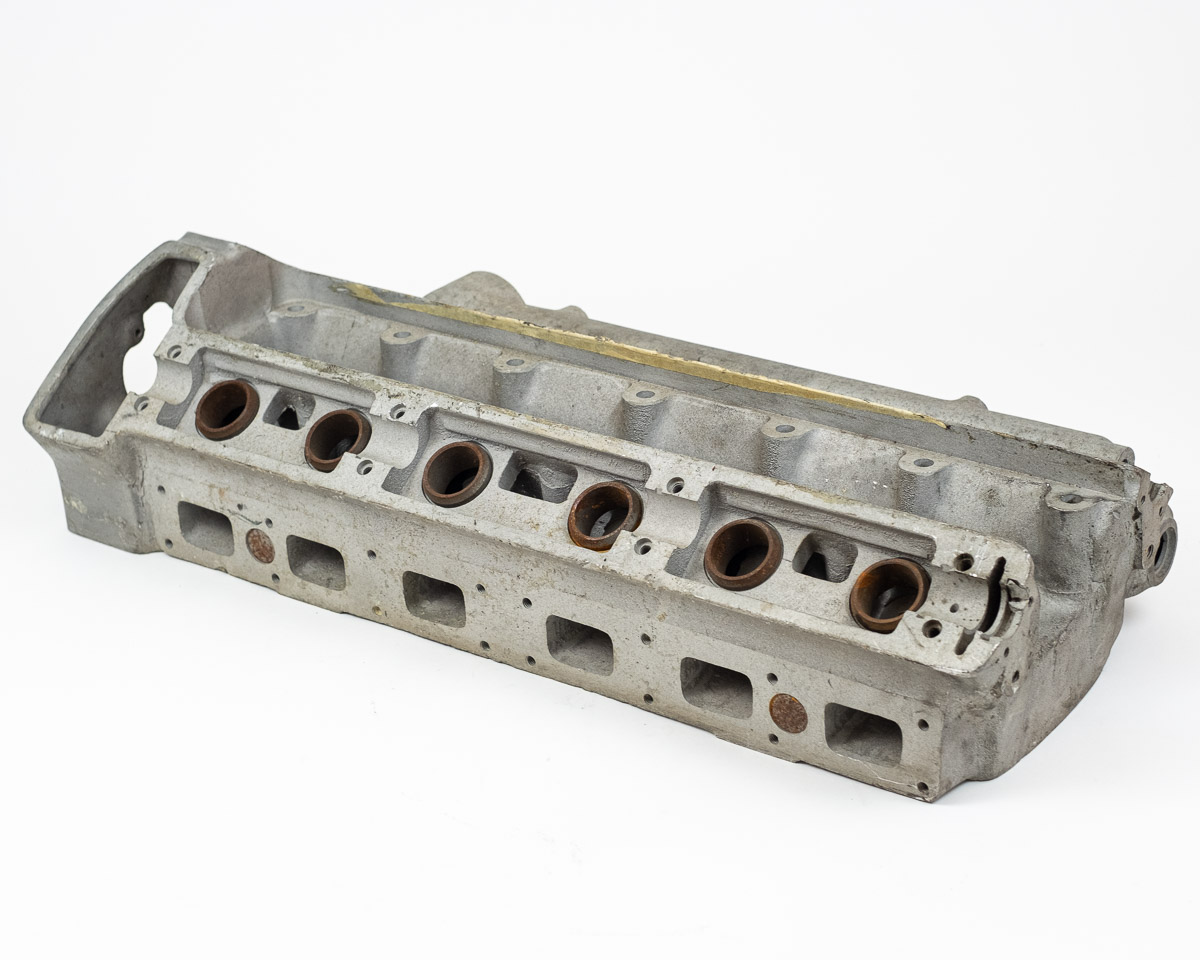

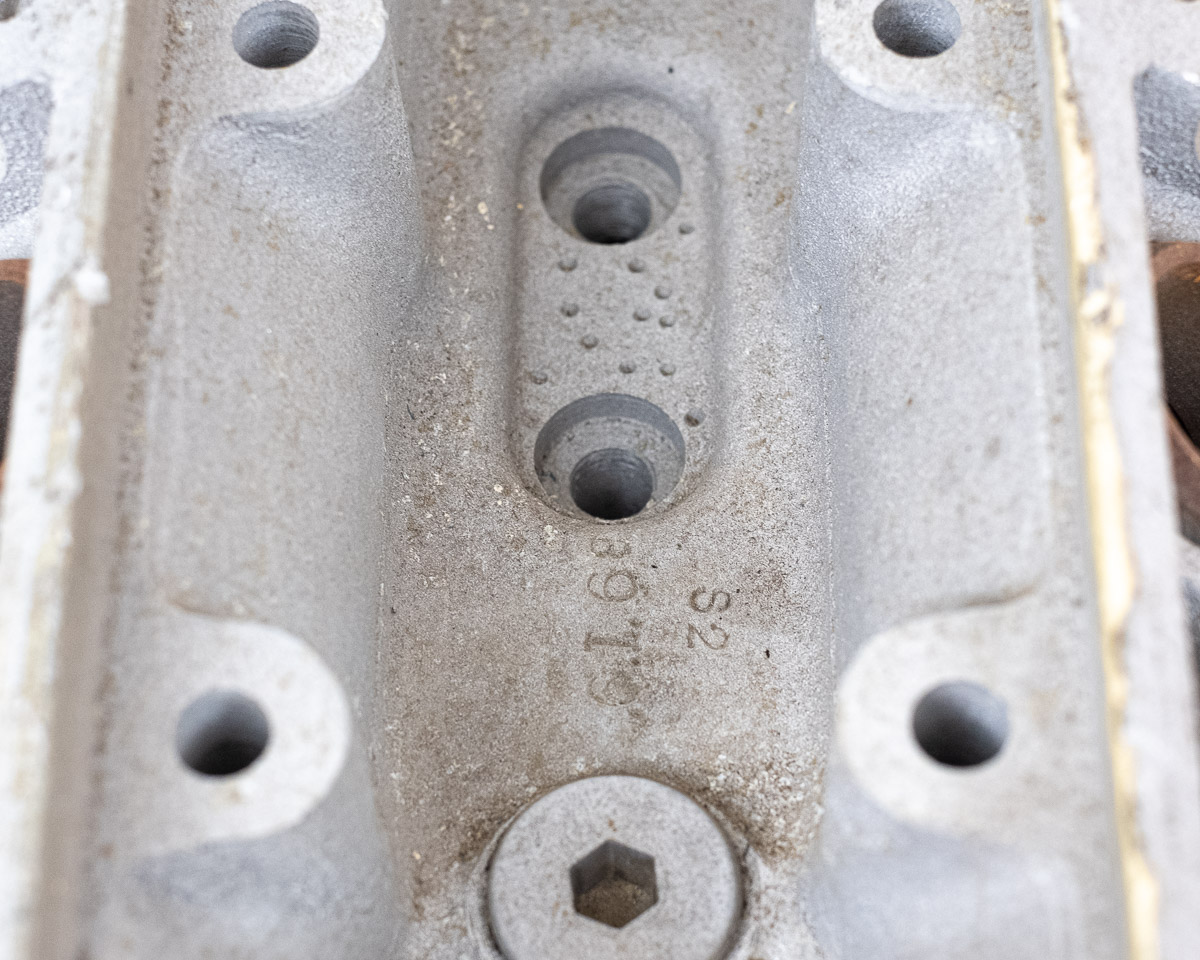

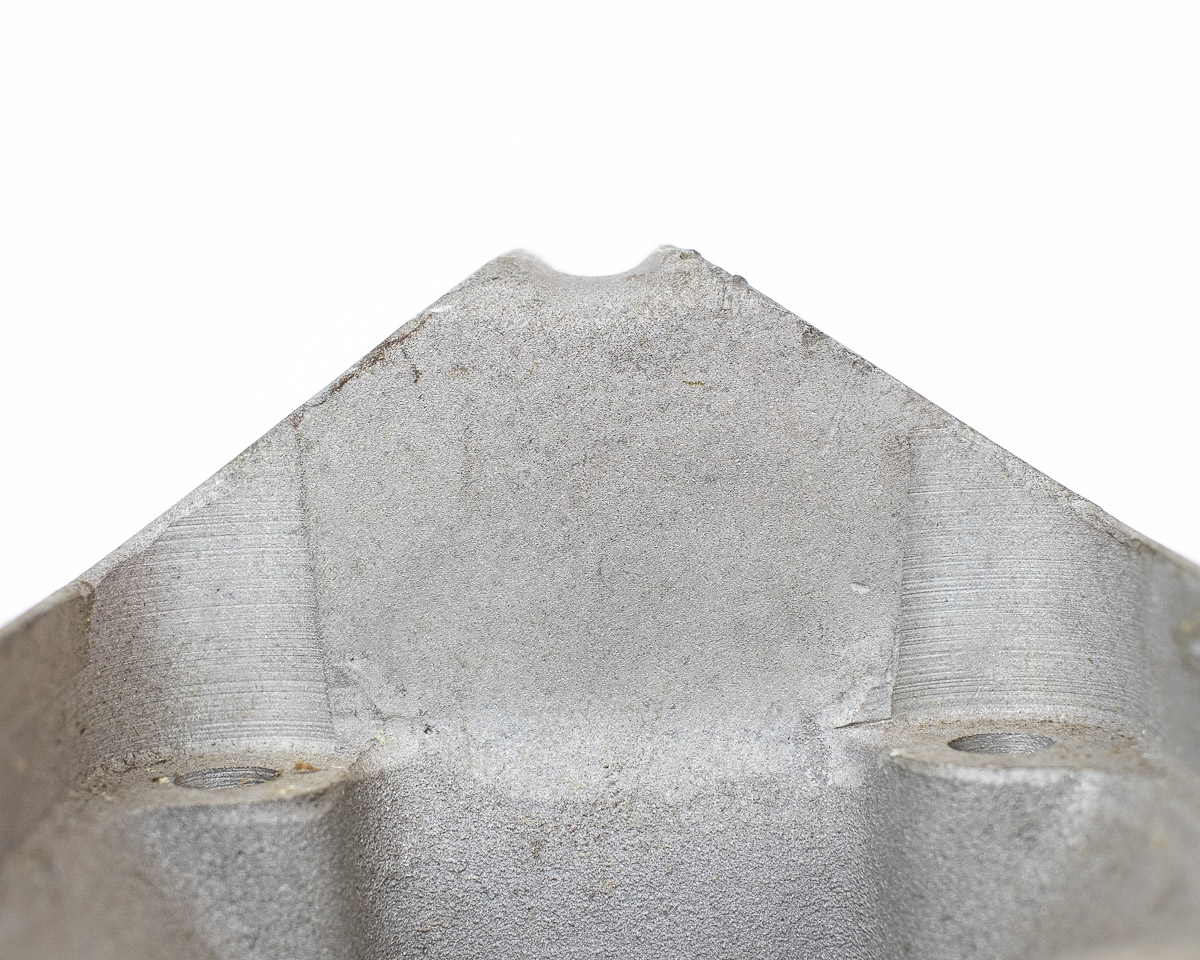

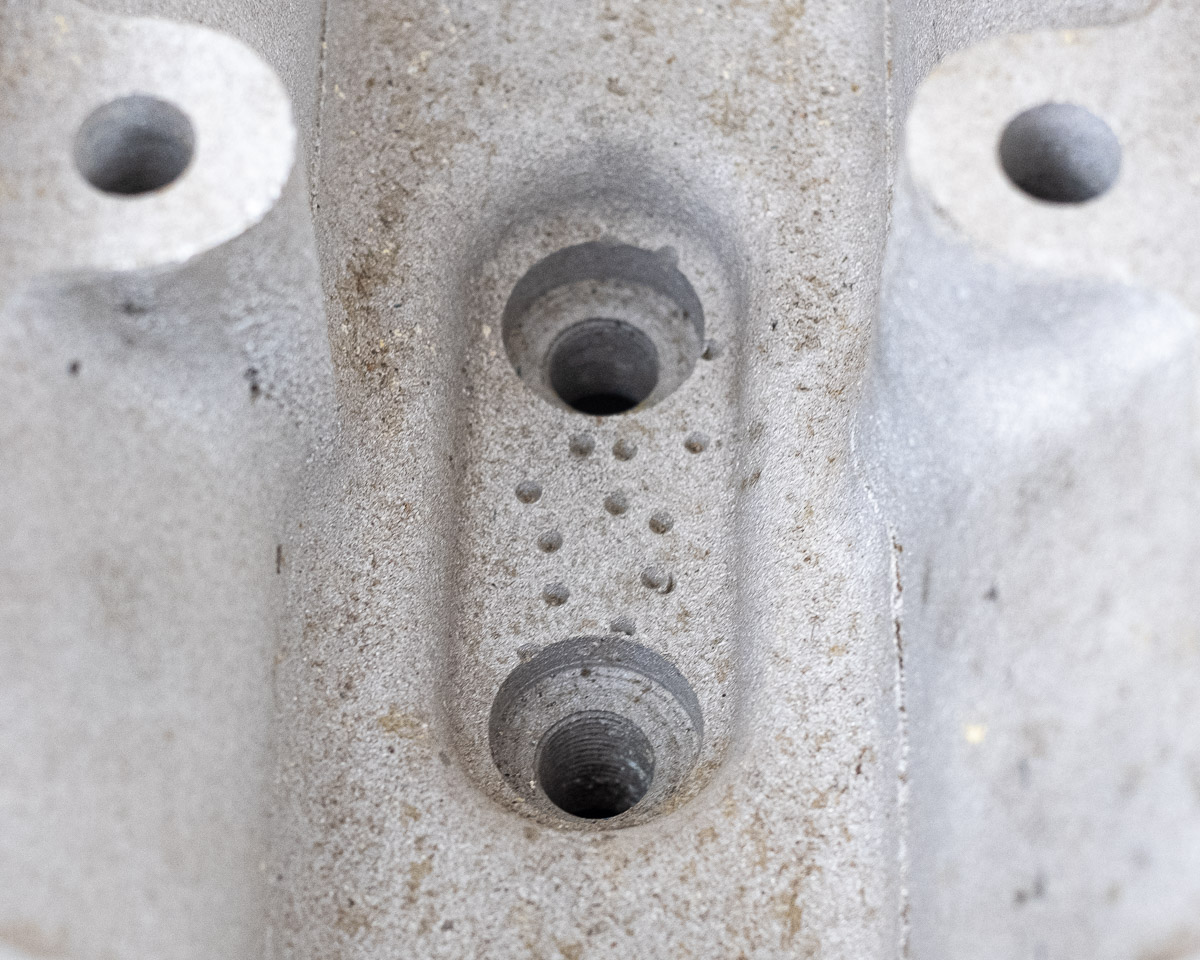

Rare alloy NOS early XK120 cylinder head with dual spark plug openings. Has early-style punch dents in the valley casting. These dents were part of the testing procedure to determine if a head had casted properly.

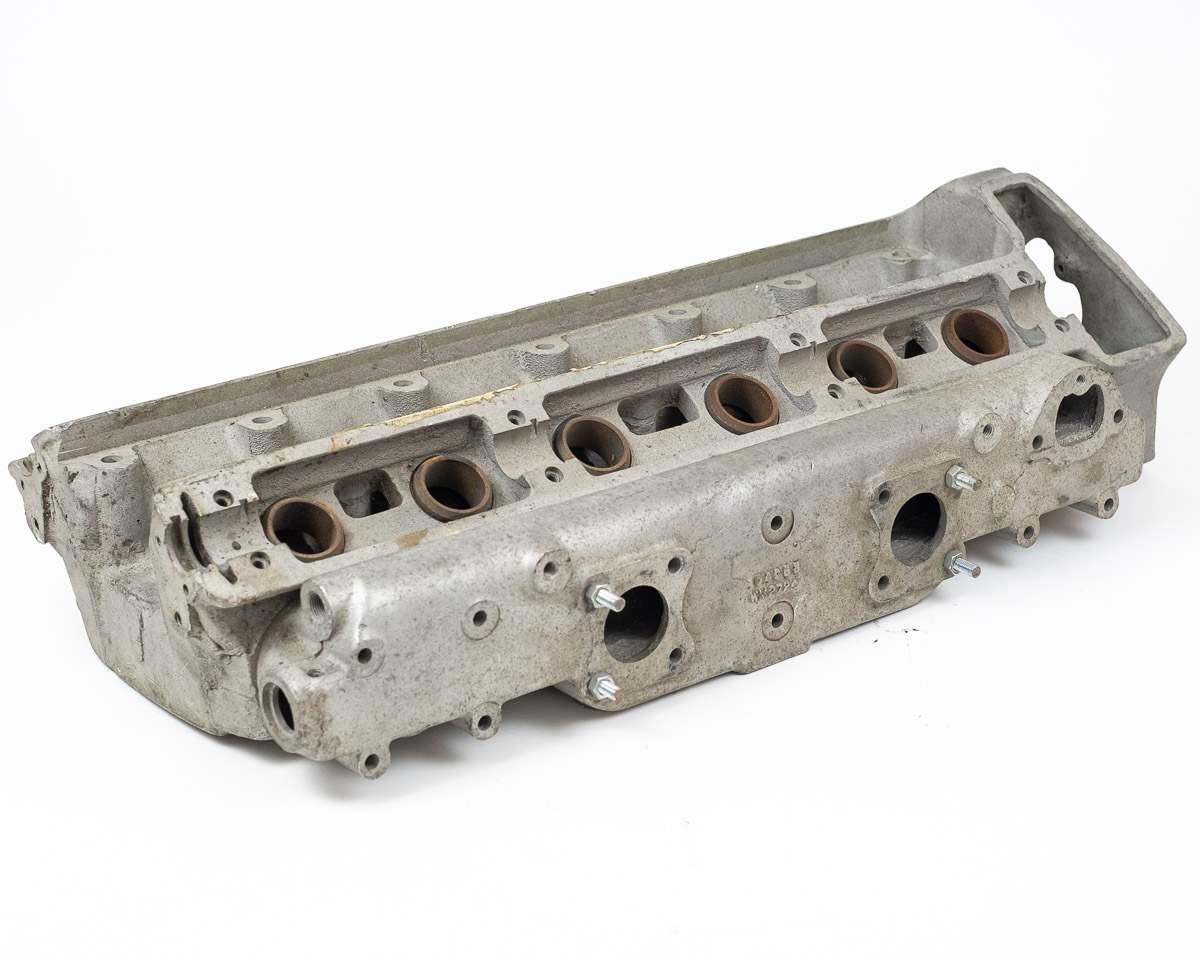

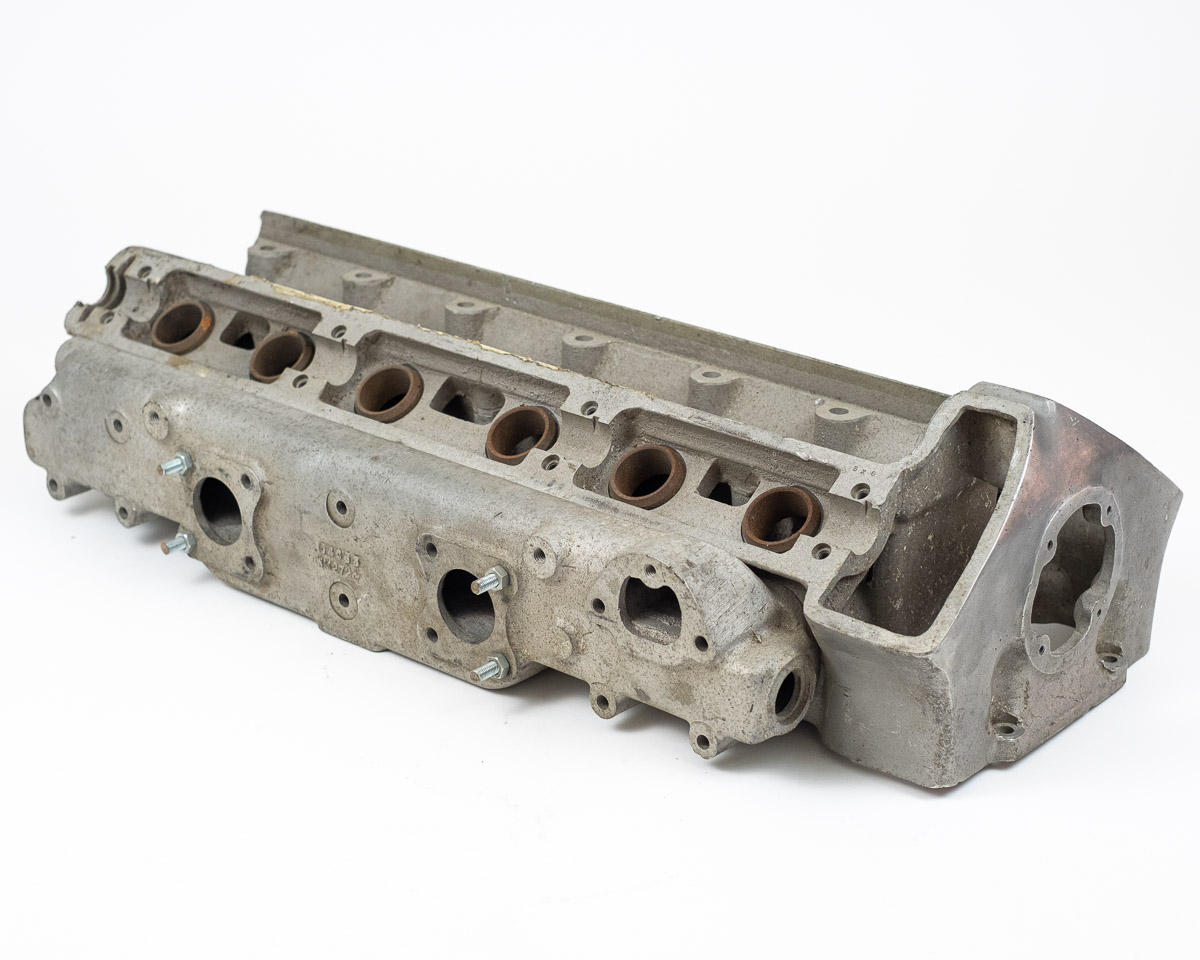

Unstamped and comes with an early C4953 manifold installed. Shelf-worn condition with some gouges and corrosion. Bare head, studless, has no cams or valves. NOS, never installed.

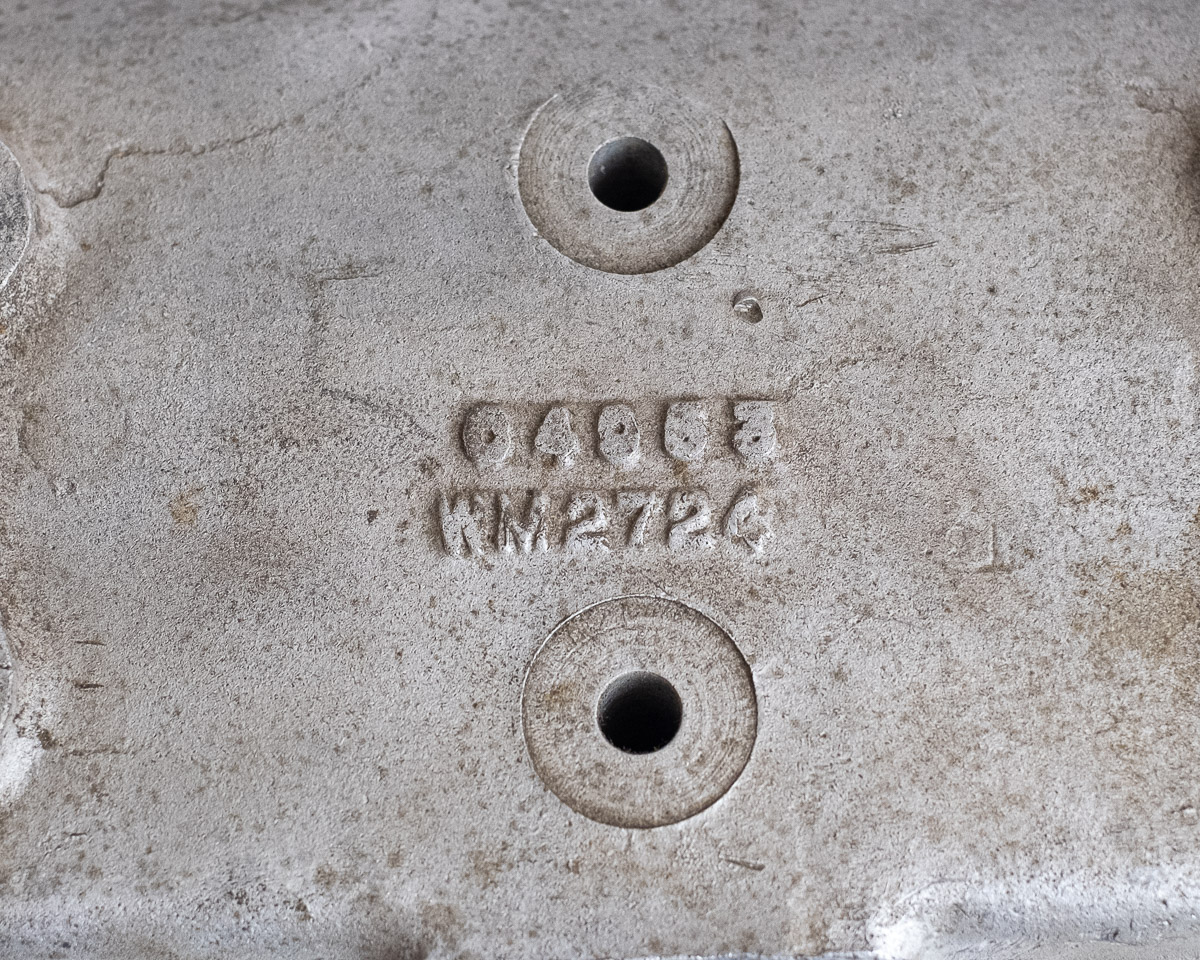

Please Note: Dual spark plug openings are a design feature of cylinder heads cast at ‘Williams Mills’ foundry (WM). Predominantly these where fitted to the XK120



Submit A Reasonable Offer


or call our sales staff directly at 1-800-875-5247 (Domestic) 1+740-282-8649 (International)

Welsh is able to offer very competitive shipping rates on oversized items. Call our sales department for more details and to obtain a shipping quote.


About the C2242:

The C2242 cylinder head was designed by Harry Westlake of Westlake & Co, Ltd. and was originally cast in the UK by William Mills Ltd. of Wednesbury and West Yorkshire Foundries Ltd. of Leeds. It is made of RR.50 aluminum alloy which was chosen over other materials to save weight (50 lb. vs. 120 lb.)

During the first two years of production, the XK120 was fitted mainly with cylinder heads forged by William Mills. The West Yorkshire produced heads found their home primarily in the Mk. VII. Determining the origin of the two foundries'' cylinder heads involves looking for differences in the casting around the middle spark plug drillings. William Mills heads were in two elliptical troughs while the West Yorkshire heads featured four separate circular troughs. In the spring of 1953 the two casting forms were unified with the 4 separated trough design prevailing. At this point the casting marks (WM and WYF) were the only way to differentiate between the two foundries, though some early heads did not carry any marks.

(Reference: Jaguar XK120 The Anatomy of a Cult Object by Urs Schmid)

Cylinder Head Infographic

Call for Price
XK120 - OTS (1948-1954)
XK120 - FHC (1951-1954)
XK120 - DHC (1953-1954)
